How to get assembly code generated by the JIT for a C# method

When you execute a .NET method, the JIT compiles the method to native code. This native code is then executed by the CPU. In this post, I describe how you can inspect the generated assembly code.

#Using the DOTNET_JitDisasm environment variable

Starting with .NET 7, you don't need any complex tools to inspect the generated assembly code. You can use the new environment variable DOTNET_JitDisasm with the name of the method to inspect. The following example shows how to inspect a method:

• Create a new console application:

  copy

  dotnet new console

• Add the following code to the Program.cs file:

  Program.cs (C#)copy

  Foo.Bar(); // Be sure the method is called, otherwise it won't be compiled by the JIT

  class Foo
  {
      public static void Bar()
      {
          Console.WriteLine("Hello World!");
      }
  }

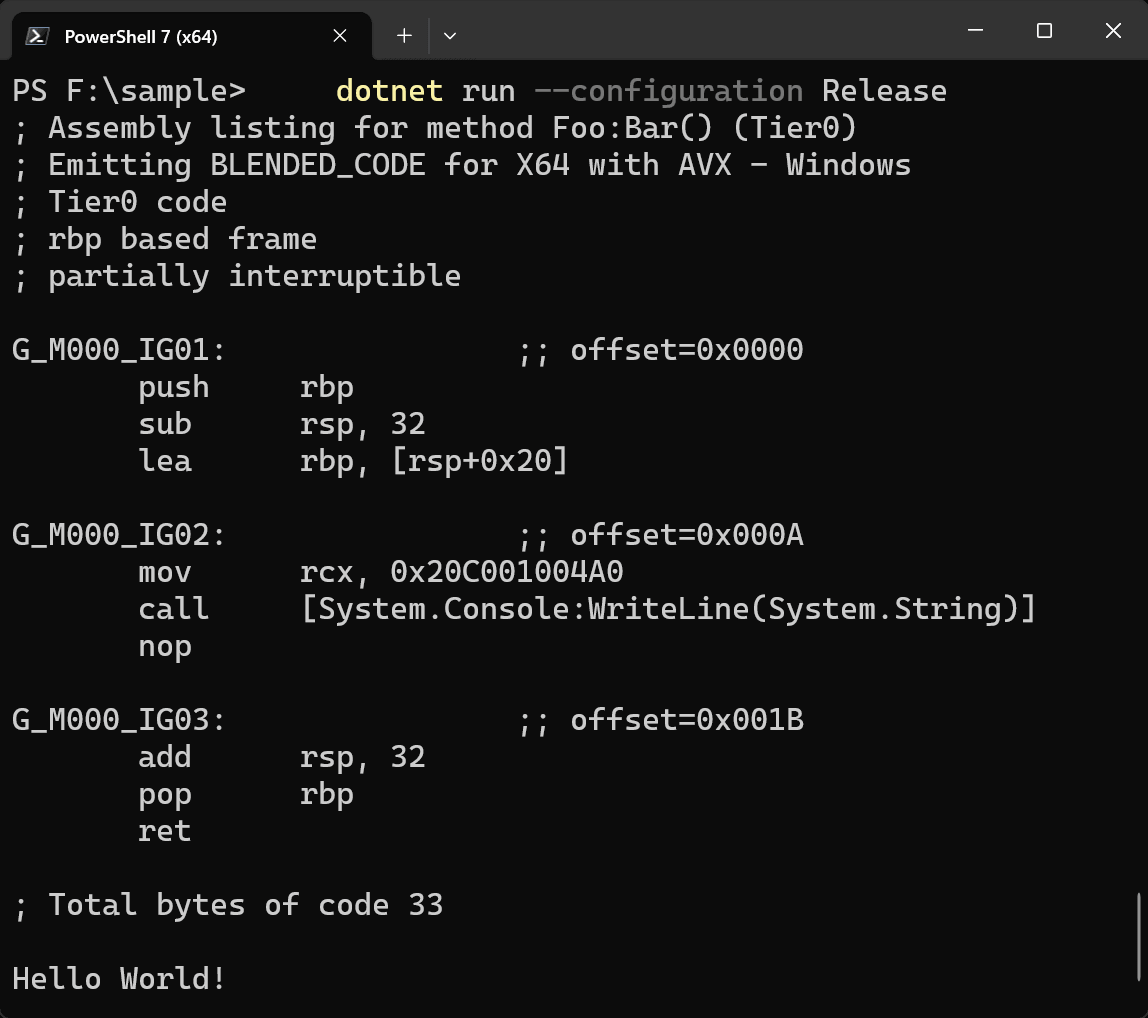

• Execute the code using the following environment variables:

  PowerShellcopy

  $env:DOTNET_JitDisasm="Bar"
  dotnet run --configuration Release

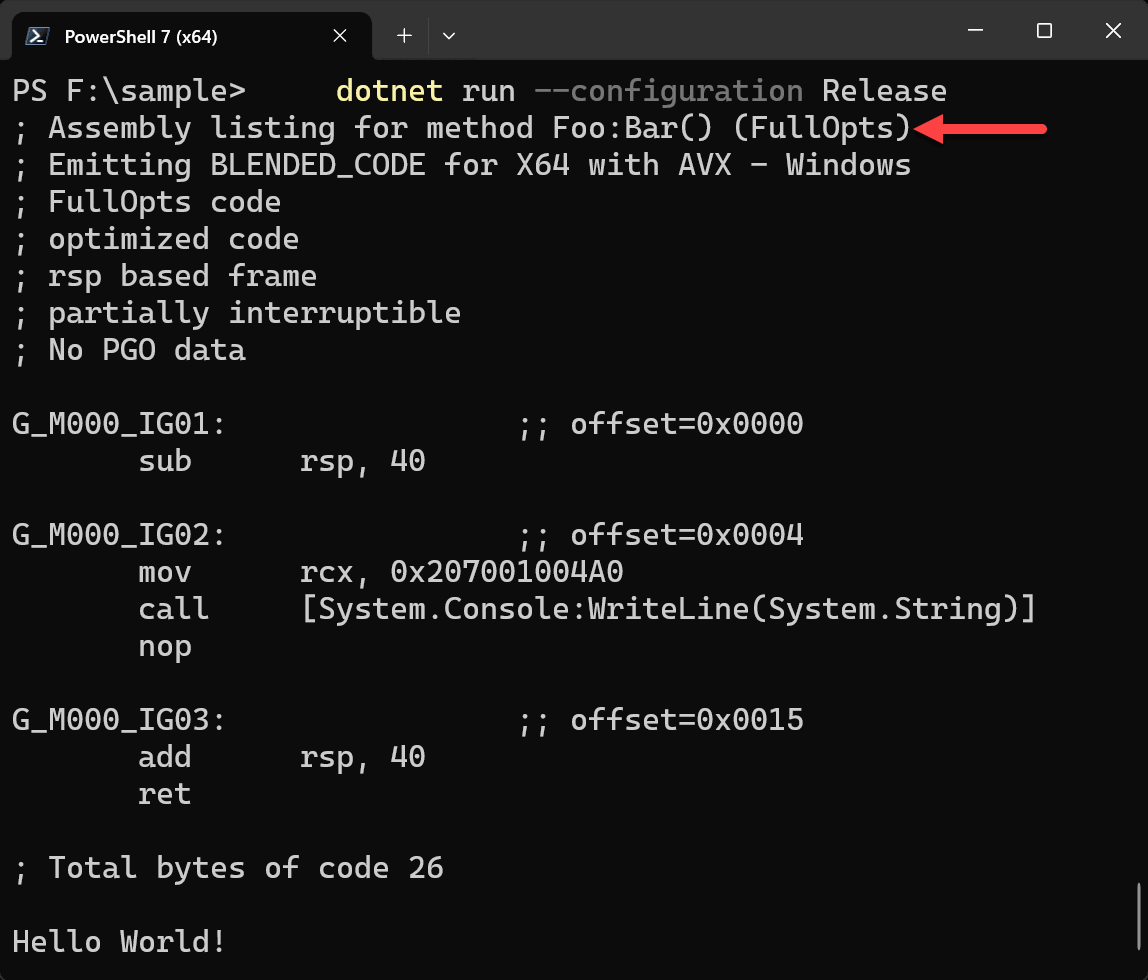

• You can also disable tiered compilation using the DOTNET_TieredCompilation environment variable. This ensures the method is compiled using the highest optimization level:

  PowerShellcopy

  $env:DOTNET_JitDisasm="Bar"
  $env:DOTNET_TieredCompilation="0"
  dotnet run --configuration Release

using System.Runtime.CompilerServices;

Foo.Bar();

class Foo
{
    // Prevent the JIT from inlining the method
    [MethodImpl(MethodImplOptions.NoInlining)]
    public static void Bar()
    {
        Console.WriteLine("Hello World!");
    }
}

#Using Disasmo

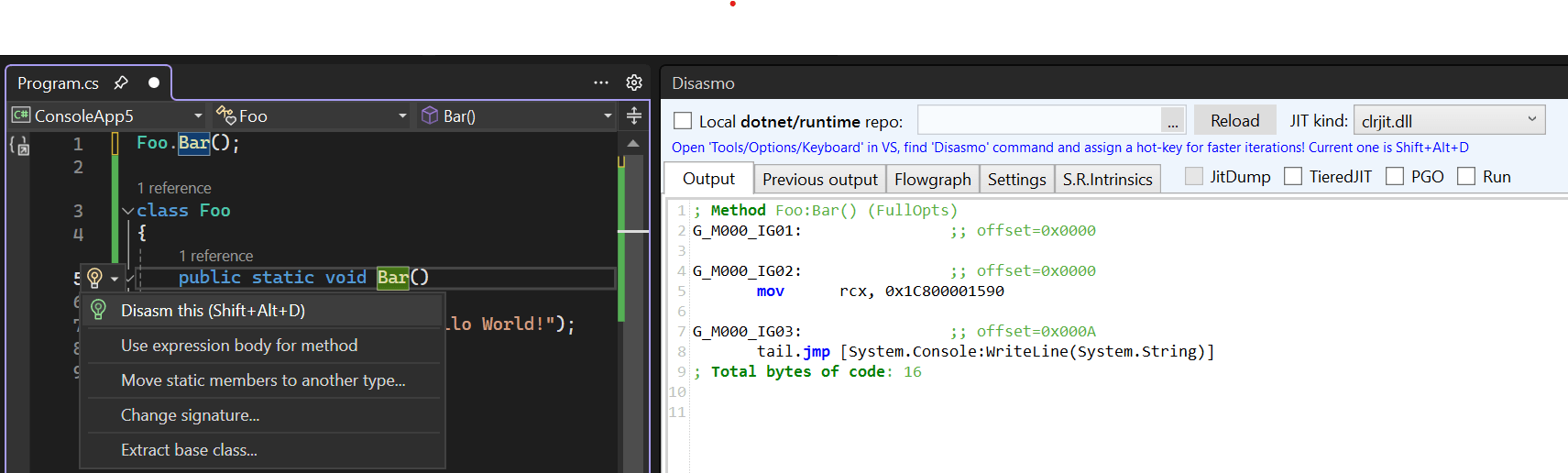

Disasmo is a Visual Studio extension that allows you to inspect the generated assembly code from Visual Studio. It's much more convenient than using the DOTNET_JitDisasm environment variable and allows you to quickly enable options such as full optimizations or tiered compilation. Also, the method doesn't need to be called anywhere in the code.

#Using Sharplab

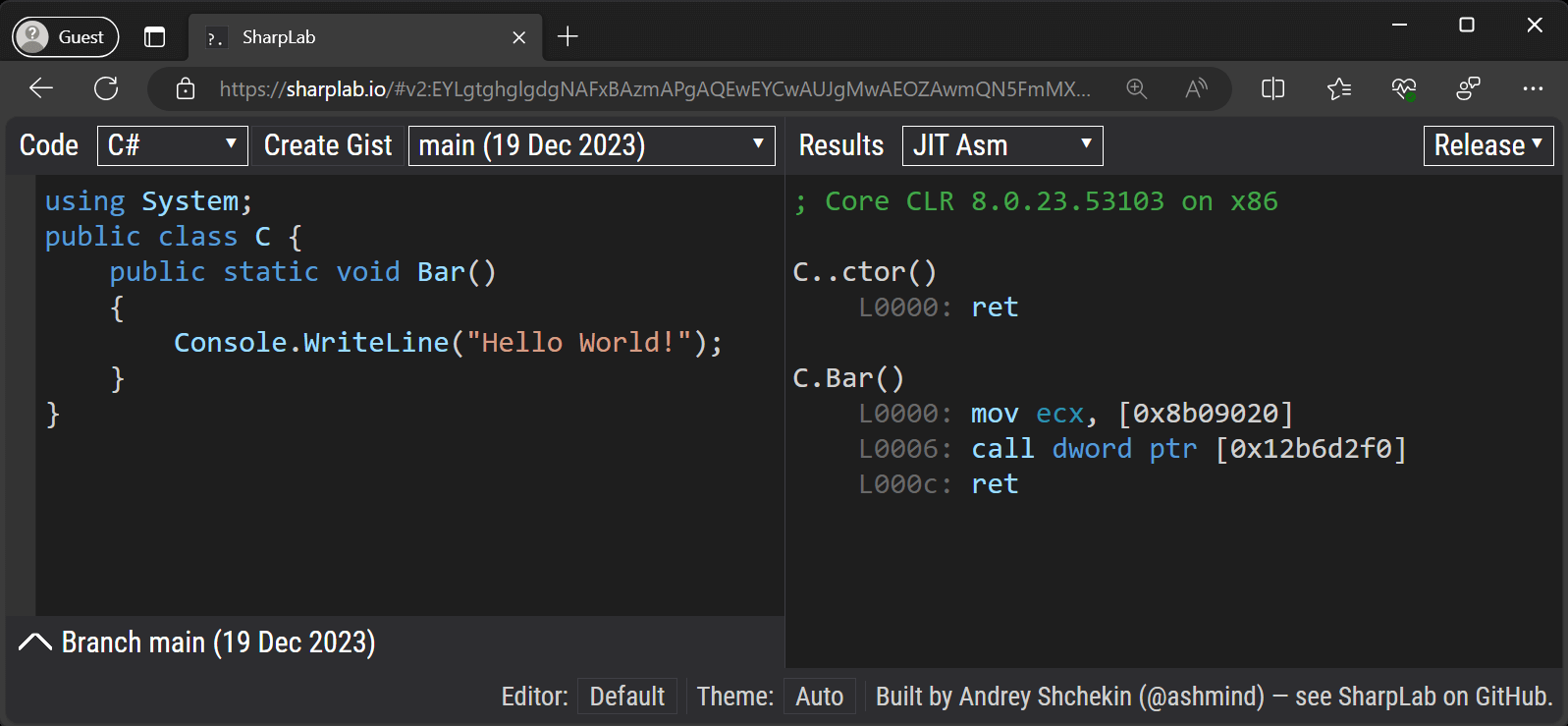

Sharplab is a very useful website that allows you to inspect the generated assembly code of a C# method. It's very convenient when you don't have Visual Studio installed or when you want to share a snippet with someone else. However, you cannot configure the JIT options such as full optimizations or tiered compilation.
